| Four Wheeler Garage Equipments - Lifts |
|
|
|
|
|

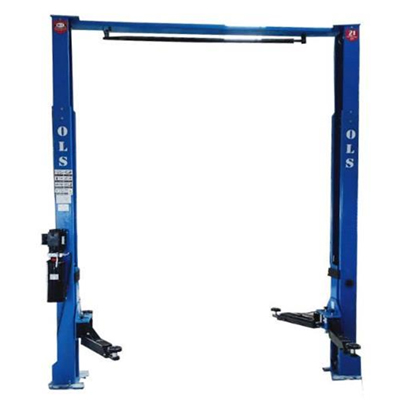

| Two Post Lift (OLS - 001) |
|
- Padded Shut-off bar to prevent damage caused by lifting a vehicle too high.
- Reliable, self-setting locking system with easy to reach lock handle.
- Symmetric 2- Post lift with Asymmetric arm design provide more pickup point then ever before.
- Two Heavy Duty Hydraulic Cylinders designed to minimize down-time by requiring minimum Maintenance.
- Spring Operate arm restraints, disengage at floor level
|
|
|
|
Capacity : 4082 kgs
Overall Height : 3642 mm
Shut Off Height : 3499 mm
Front Arm Reach : 711 mm – 1054 mm
Rear Arm Reach : 800 mm – 1137 mm
Over Floor Width : 3353 mm
Inside Column Width : 2769 mm
Drive Through : 2515 mm
Power : 3 Phase
Motor : 2.2 KW |
|
|
|
|

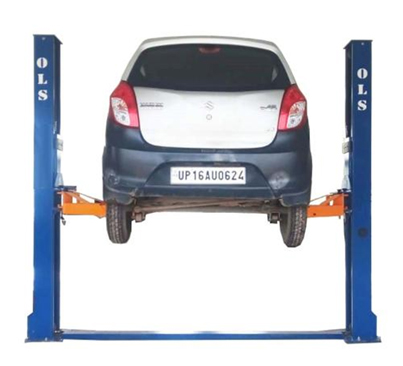

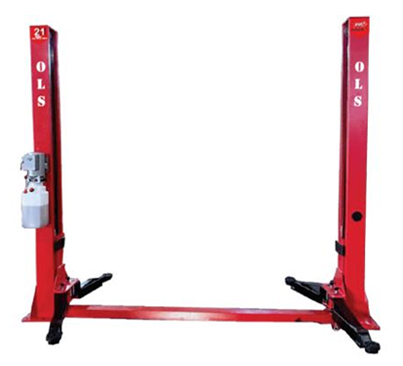

Two Post Lift (OLS - 001A) |
|
|
|
|
Mechanism : Electro Hydraulic
Capacity : 4 Ton
Lifting Time : 45 Sec.
Lifting Height : 2007mm
Drive-Thru Width: 2470mm
Operating Voltage: 415V, 3 Phase
Surface Finish: Powder Coated
Clear Floor Lift
Symmetric Arm Design
Two Full Stroke Cylinder with Overhead Cable for Equalization
Single/Double Point Lock Release
No Power Required While Descending |
|
|
|
|
|

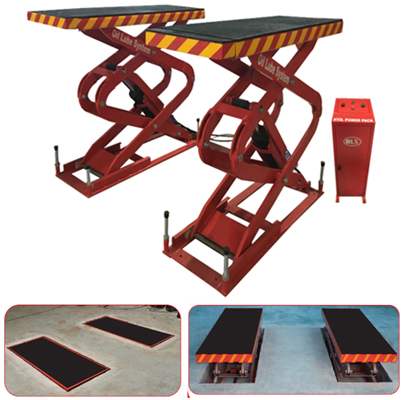

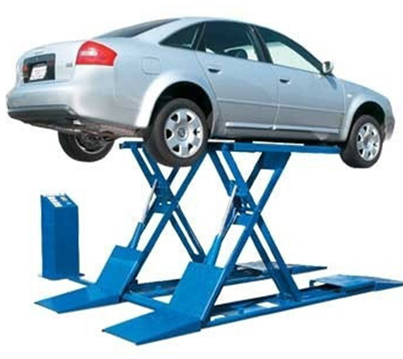

| Dual Scissor Lift (OLS - 002) |
|
- Controlled by hydraulic cylinders.
- Adjustable platform extensions to adapt for vertical length.
- Platform is electro-hydraulic operation.
- Air operated safety locks.
- Comes with photo sensors as safety device.
- Includes rubber pads.
- Available as surface mounted or Flush Type options.
|
|
|
|
Lifting Capacity : 3175kgs
Lifting Height : 1820mm / 2010mm*
Minimum Height : 189mm
Overall Width : 1960mm / 1970mm*
Overall Length : 4208mm / 2997mm*
Width of Platforms : 530mm*
Length of Platforms : 1450mm / 1550mm*
Width b/w Platforms : 987mm / 910mm*
Motor Power : 2.2kw
Power : 3 Phase |
|
|
|
|
| Four Post Lift (OLS - 003) |
|
- Electro- Hydraulic Operation.
- Powder Coat Finish.
- Optional : Air pump for rolling jack.
- Available with or without wheel alignment options.
|
|
|
|
Lifting Capacity - 4082 Kgs
Overall Length (with ramp) - 5337 mm
Overall Width (with motor) - 3276 mm
Width of Runways - 508 mm
Length of Runways - 4500 mm
Width b/w Runways - 1000 mm
Inside Width of Columns - 2716 mm
Inside Length of Columns - 4190 mm
Drive-Thru Clearance - 2330 mm
Motor - 2.2 Kw
Power - 3 Phase |
|
|
|
|
| Wheel Alignment Scissor Lift (OLS - 004) |
|
- Hydraulic System Synchronizes the movement of runways.
- Integrated limit switch controls high & low lift positions.
- Easy to use and maintain control panel features push button controls.
- Machine available as flush type or surface mounted.
|
|
|
|
Lifting Capacity : 3500 kgs
Lifting Height : 1525mm / 1825mm*
Lowered Height : FLAT / 300mm*
Overall Length : 4470mm / 5680mm*
Overall Width max : 2283mm
Runway Length : 4000mm
Maximum Wheel Base : 3488mm / 3578mm*
Runway Width : 625mm
Std. Electrical Power : 3 Phase
Compressed Air : 6-8 Bar (85-115 psi) |
|
|
|
|
| Wheel Alignment Lift (OLS - 021) |
|
- Hydraulic System Synchronizes the movement of runways.
- Integrated limit switch controls high & low lift positions.
- Easy to use and maintain control panel features push button controls.
|
|
|
|
Capacity : 4 ton
Overall Height : 7.1 feet
Length : 14 feet
Working Height : 6 feet
Motor/Voltage: 5HP/3 Phase(415V)
Lower Height : 1 feet
Compressed air connections & safety lock |
|
|
|
|

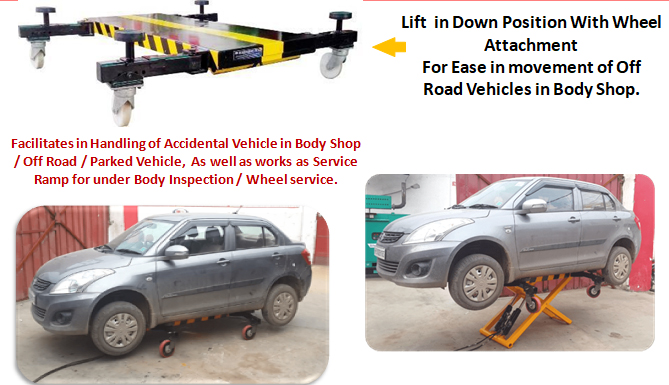

| Scissor Rolling Lift (OLS - 005) |
|
- For Accidental Vehicle in Body Shop.
- Handling Off Road Vehicles by Rolling on Wheels
- Assist in Movement of Parked Vehicle.
- Works as Service Ramp for under Body Inspection at Express Bay.
- Suitable for Wheel service.
- Can be used in Show Room for Rotating Demo Vehicles.
- Operates thru Portable Hyd. Power Pack, easy to move on shop floor.
- Suitable for on Site Service by placing in Mobile service Van.
- Can be used in Service Camps.
- Low Maintenance, Hi Productivity.
|
|
|
|
|
|
| Low/High Rise Scissor Lift (OLS - 006) |
|
- Works as Service Ramp for under Body Inspection at Express Bay.
- Suitable for Wheel service.
- Operates thru Portable Hyd. Power Pack, easy to move in shop floor.
- Suitable for on Site Service by placing in Mobile service Van.
- Can be used in Service Camps.
- Suitable on Washing Bay.
- Low Maintenance, Easy Operation.
|
|
|
|
|
|
|
|

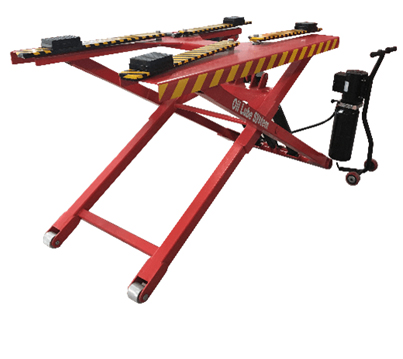

Tyer Changing / Wheel Balancing Lift
(OLS - 007) |
|
- Operated by hydro-eletric power pack, used in quick service bays and wheel service bays that need extra lifting height.
- 3 Ton capacity portable scissor lift.
- This portable lift, easily lift a vehicle to a comfortable working height & does not require to position of under the lifting points of the car.
- The vehicle is driven over scissor ramp & the operator simply positions the heavy duty rubber block under the correct lifting points.
- The operation is very quick & no chance for any damage to the under body of the car.
- The unique open design of the lift allows access to many areas to the underbody of the car that are not easily accessible with other portable lift.
|
|
|
|
|
|
| Three Wheeler Scissor Lift (OLS - 008) |
|
- Hydro-electric operated.
- Capacity - 2 Ton.
- Powered by Hydraulic Power Pack with 415V,
- Hp motor with safety locks.
- Movement (Up& down ) by Electric On/Off switch.
|
|
|
|
|
|
| Washing Lift (H) (OLS - 009) |
|
- High grade steel Cylinder manufactured to close tolerance with hard chrome plating for high wear resistant.
- Also gives a clean good finish.
- Uniquely designed wiper rings seal to prevent entry of water and dirt particles into the hoist cylinder while raising, servicing and lowering.
- Gland rings used in the cylinder to increase performance.
- Always use recommended hydraulic oil 68 Grade.
|
|
|
|
Capacity 3 Ton
No. of posts 1
Cylinder diameter 260 mm
Operating pressure 9 to 12 Kg/cm2
Lifting height 1500mm
Ramp length (front) 4500 mm
Ramp width 700 mm
Oil fill capacity 1 60 Ltrs.
Type Pneumatic operation. |
|
|
|
|
Three Wheeler Washing Lift (Y & H) Framr
(OLS - 010 & 011) |
|
- Washing lift with H frame
- Mode of Operation - Hydro pneumatic
- Capacity - 2 Ton
- Lifting height - 1800 mm
- Adjustable base support to suite any size of three wheeler.
- Oil reservoir tank capacity160 Ltr.
|
|
|
|
|
|
|

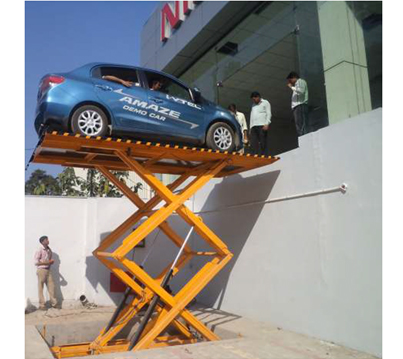

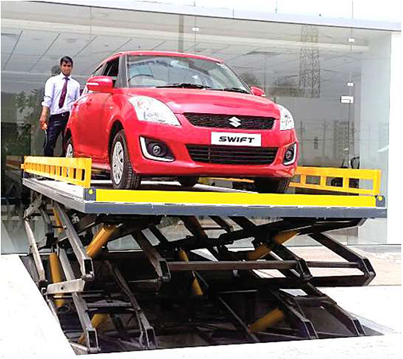

| Car Loading unloading Lift (OLS - 012) |
|
- Hydraulic Operation.
- AC 3 Phase Operated Electric Motor to Operate Power Pack with Safety Solenoid Switch & Pressure Relief Valves.
- Customized Design as Per Site Requirement.
Capacity - 3-4 Ton
Maximum Height - 14 Feet
Over all Length - 4270 mm
Over all Width - 2300 mm
|
|
|
|
Loading Unloading Ramp For 3 Wheeler
(OLS - 013) |
|
- Specially designed for loading /unloading Two / three wheeler from the truck container.
- Height can be adjusted as per requirement.
- Operated by manual hydraulic power pack.
|
|
|
|
|
| Loading Unloading Trolley (OLS - 018) |
|
- Assist in removal and installation of engine and gear box.
- Capacity : 0.5 Ton
- To carry engine/gear box from one place to another.
- Manually Hydraulic operated with four castor wheels for ease in movement.
|
|
|
|
|
|
| Conveyor Type Parts Loading Unloading Trolley (OLS - 019) |
|
- Assist in removal and installation of engine and gear box.
- Roller used for easy movement of heavy aggregate.
- To carry engine/gear box from one place to another.
- Castor wheels for easy movement .
- S.S tray for collecting engine oil from dismantled parts.
|
|
|
|
|
|
| Mini Hyd. Loading Unloading Trolley (OLS - 020) |
|
- Assist in removal and installation of engine and gear box.
- Capacity : 01 Ton
- To carry engine/gear box from one place to another.
- Manually Hydraulic operated with four castor wheels
|
|
|
|
